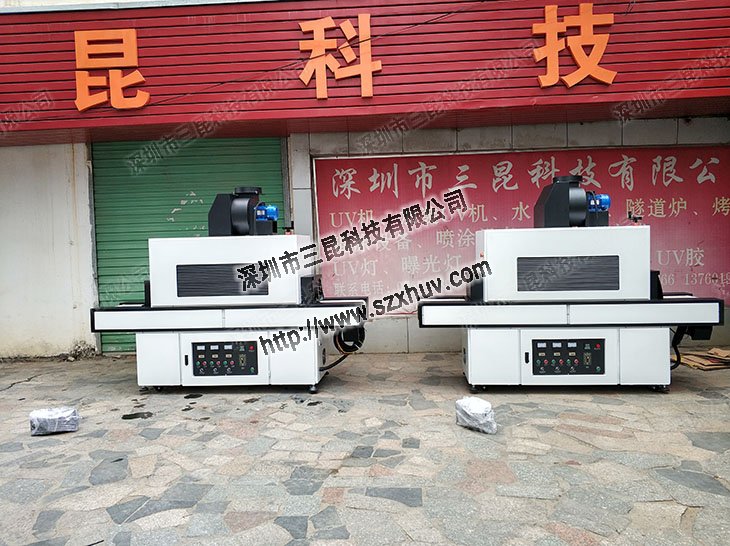

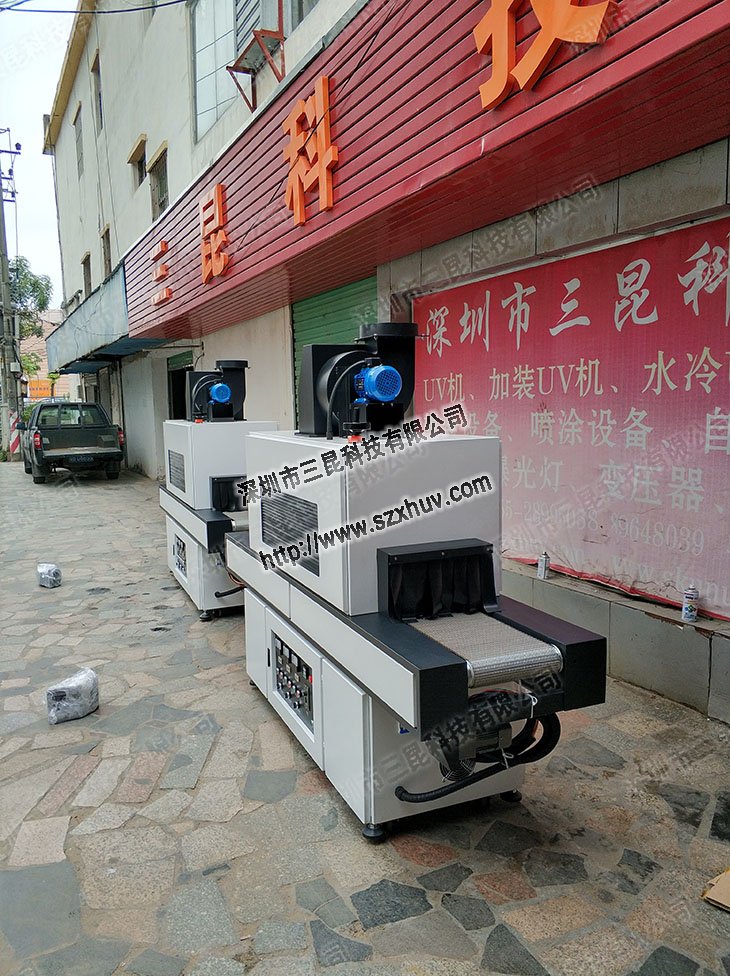

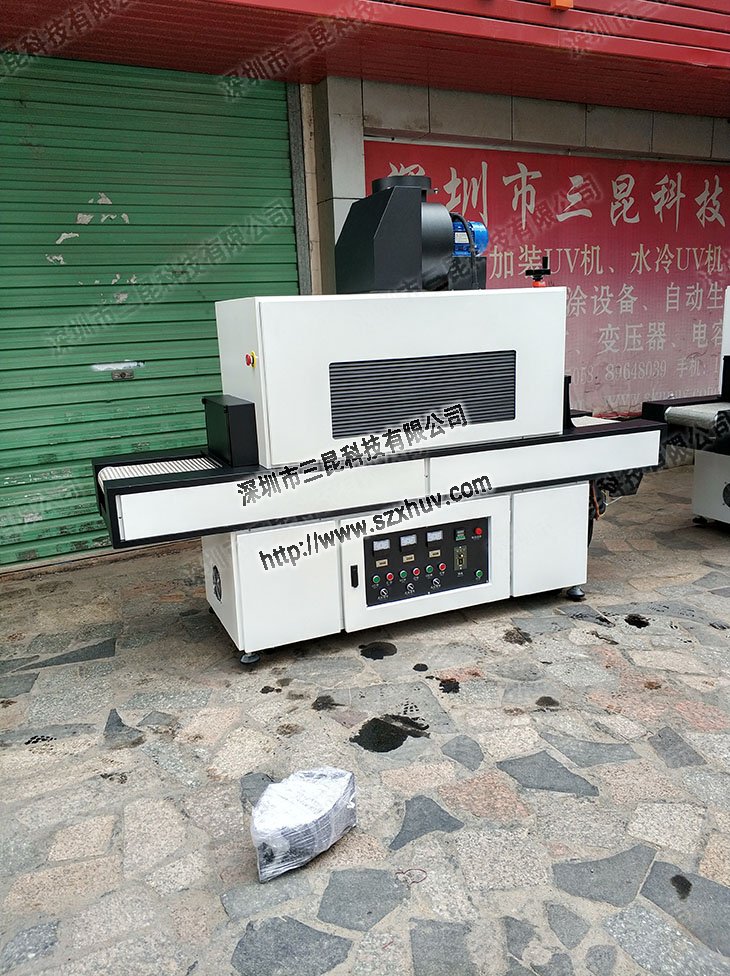

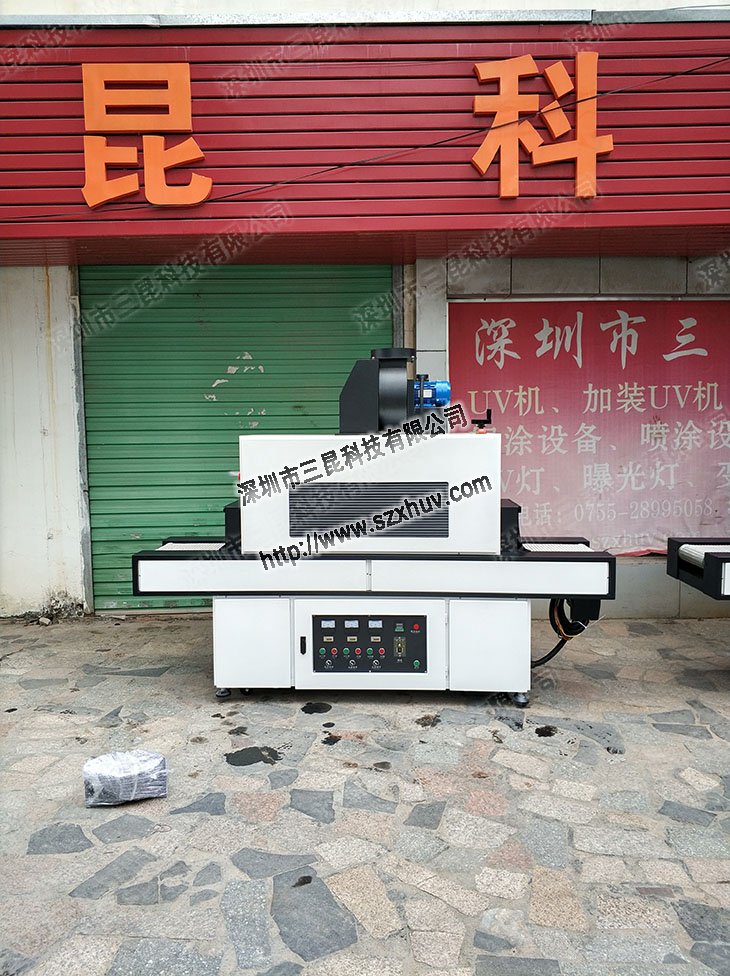

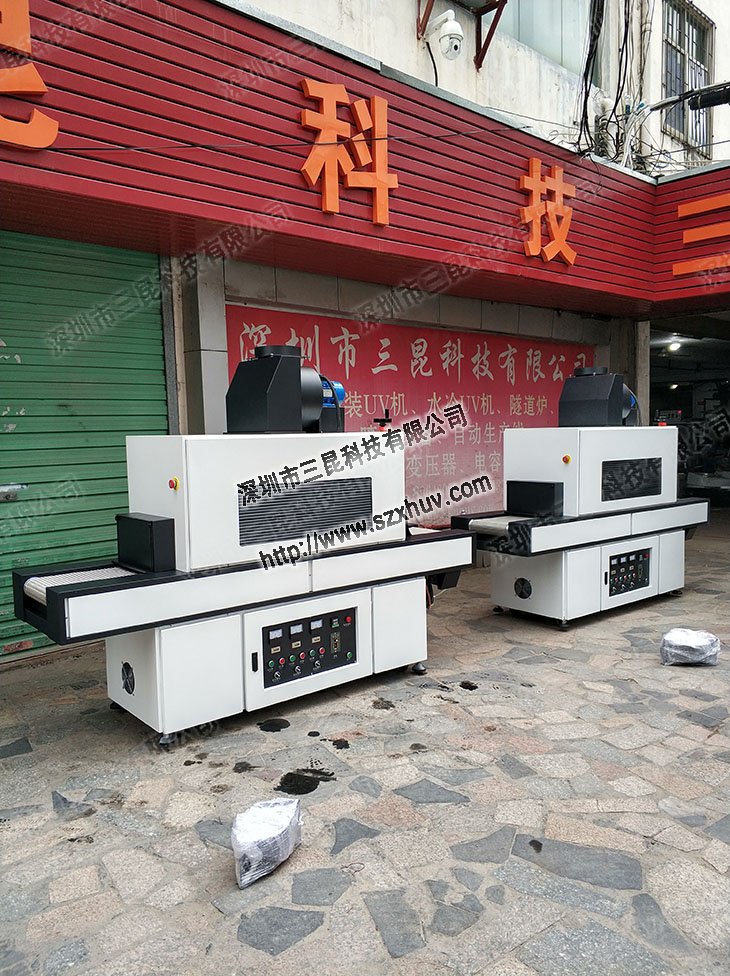

【三燈uv固化機】用于工藝品涂漆后干燥SK-304-300D

品牌：SunKun(三昆)

型號：SK-304-300D

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 1753480168

⒉業務咨詢：13913507139(黃永貴) 2851085006



⒈市場部：13510246266(黃總經理) 289604232

1、UV燈功率:4.0kw*3支(鹵素燈)
2、UV燈總長:420mm、弧長:300mm
3、UV波段主波峰:365nm、380nm
4、UV燈累時器配置
5、強弱光強調節:50%、100%
6、鈑金燈箱安裝光學反射器和光學濾光鏡片
7、采用上、下排風系統
8、輸送材料:不銹鋼網帶
9、輸送寬度:300mm
10、輸送速度:0~5m/min
11、入口高度:200mm
12、電源:380VAC 50HZ

1, UV lamp power: 4.0kw * 3 (halogen)
2, the total length of the UV lamp: 420mm, arc length: 300mm
3, UV band main peak: 365nm, 380nm
4, UV light timer configuration
5, strong and weak light intensity adjustment: 50%, 100%
6, sheet metal light box installed optical reflector and optical filter lens

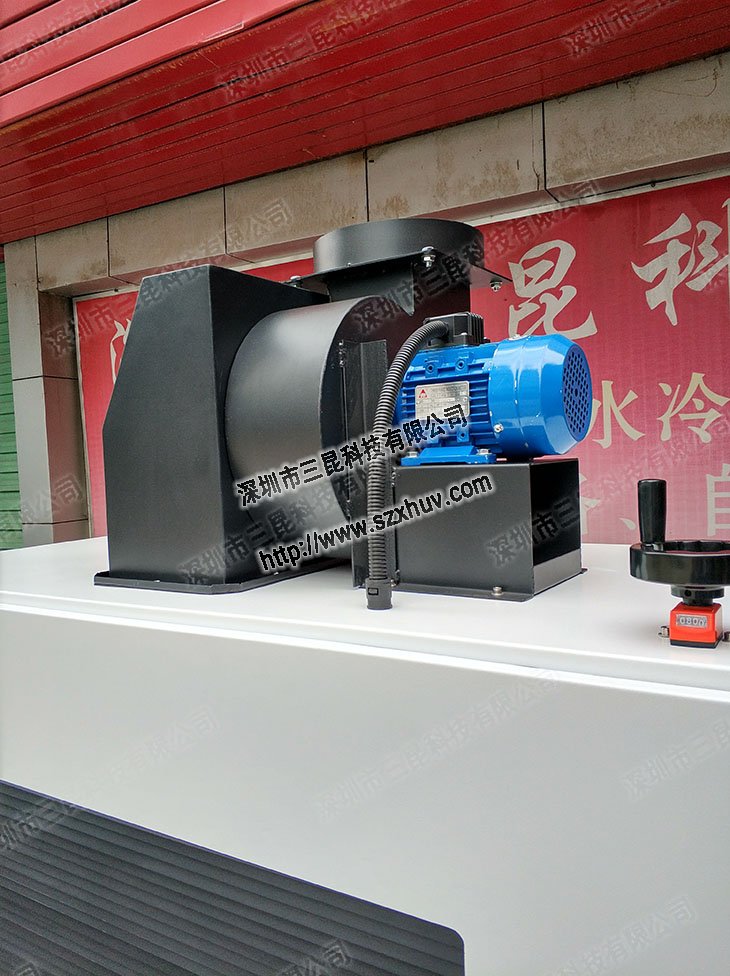

7, using the upper and lower exhaust system
8, conveying materials: stainless steel mesh belt
9, conveying width: 300mm
10, conveying speed: 0~5m/min
11, the entrance height: 200mm
12, power: 380VAC 50HZ

1.配置3套UV光源系統，根據生產需要開啟燈管數量。
2.鐵氟龍輸送網帶，精工制作，運行平穩，無噪音。
3.調速電機及調速器，輸送帶無級調速可視生產情況調速輸送速度。
4.聚光型設計，進口高聚光反光燈罩，瞬 時干燥，速度特快。
5.UV燈罩的光照高度可調整。
6.UV燈管的工作電流可通過外示表針顯示，有效掌握UV系統的工作狀態。
7.配備精巧的散熱系統，防止工作腔室的溫度過高，同時有效保護生產工作環境.

1. Configure 3 sets of UV light source system, and turn on the number of lamps according to production needs.
2. Teflon conveyor belt, made by precision, running smoothly and without noise.
3. Speed regulating motor and governor, conveyor belt stepless speed regulation can be adjusted according to production conditions.
4. Concentrating design, imported high-concentration reflector, instant drying, fast speed.
5. The illumination height of the UV lampshade can be adjusted.
6. The working current of the UV lamp can be displayed through the external indicator pin to effectively grasp the working state of the UV system.
7. Equipped with a sophisticated cooling system to prevent the temperature of the working chamber from being too high, and effectively protect the production environment.
